300 Ton Lifting Beam
Background
Our client, a company in the energy sector, needed to transport a 270-ton rotor through their plant via crane. Their crane capacity was 100 ton each so we design a lifting beam, a type of below the hook device (BTH), set to utilize all three of their 100-ton cranes. The beam set was designed with a 1.25% safety rating and was rated for 300-tons. Once cranes were attached the two forward cranes were placed in a “brake off” configuration and the rear crane did the pushing of the two forward cranes.
Results

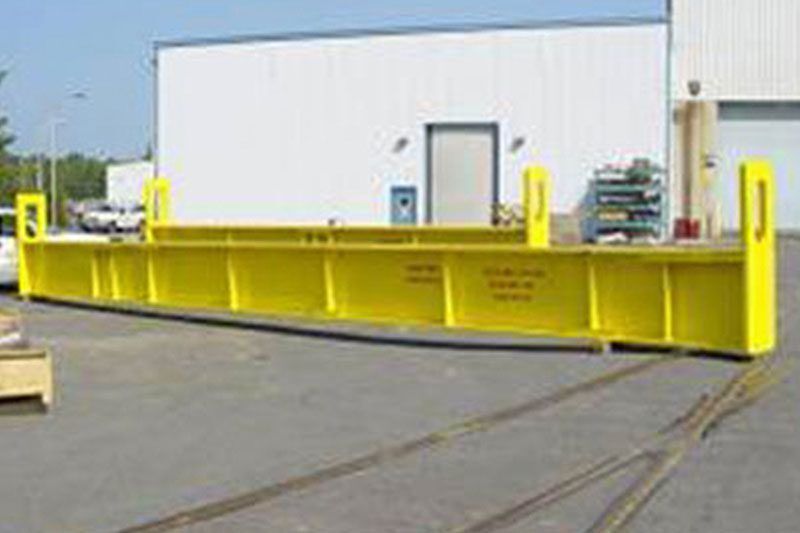

The lifting beam complies with the ANSI-B 30-20 standard for below the hook (BTH) lifting devices and was designed with one center lifting lug for use with 100-ton cranes. The beam length was 360 inches with 13 lifting holes on each side with a total maximum lifting weight of 300 tons.
Engineering Services
Whether you need engineering services for below the hook lifting devices, or other services, ENSER Corp, has the engineering skills and know-how to complete your project.
